Pure Theatre CR35 Projector Lift
Allow 3-5 Days to Manufacture
LEAD TIMES EXPLAINED
In Stock - Items marked as In stock are currently in our warehouse. Next day delivery is available at checkout If ordered before 2pm.
Available - Items marked as available are purchased from third parties, we try to give an accurate lead time but we cannot offer any guarantees.
Manufactured In-house - Items marked as such are manufacured to order right here at the Pure Theatre factory
Pre Order - Details of these items have been released by the manufacturer and are available to pre-order. We try to give an accurate lead time but we cannot offer any guarantees.
- SKU
- CR35-LFT
- Color
- White
Description

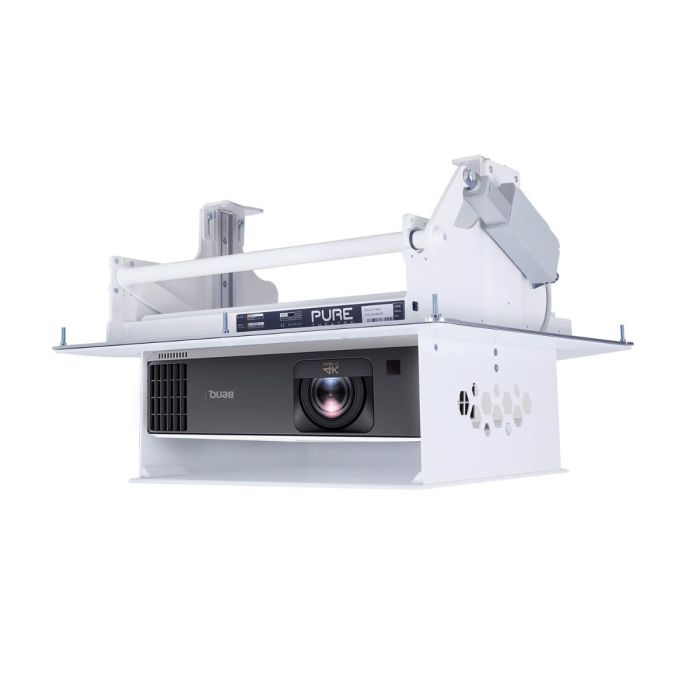

CR35 Projector Lift
The CR35 projector lift is one of our entry level retractable projector ceiling mount used to hide your projector into the ceiling when it's not being used. The motorised feature of the projector lift allows it to retract at the touch of a button.
Due to the small size of the projectors, the fitting of the lift has to be more accurate to ensure the lens is central to the screen and the throw distance is correct.
Side View Dimensions
Looking from the side view you can see this is one of our smaller projector lifts and will fit in standard 8" joists, with a distance of 420mm between joists.
Rear View Dimensions
Looking from the rear view you can see that the width required above the plasterboard cutout is 590 mm.
Note that the minimum width above the plasterboard is wider then the plasterboard cutout, as the actuators are wider and these step over the plasterboard when installed.
Concealed Solution
A unique lightweight aluminium construction encases the projector whilst retaining a smooth exterior profile. This enables home owners to have a fully recessed ceiling lift mechanism that is only seen when it’s meant to be.
Easy Installation
As with our screens, lifts are designed with installation in mind, and can easily be fitted to standard ceilings creating the most compact in-ceiling projector lifts available. Our unique mounting system means you don’t even have to paint the ceiling after fitting
Built In Control System
Designed and programmed in-house, our control system provides the most advanced features of any screen in the world.
Quiet and Precise
Our 24v DC linear actuator drive motors provide the fastest, most reliable, and precise operation. Linked to our own advanced current sensing control system ensures that the ceiling lift closes seamlessly every time with near silent operation of only 35dB.
Advanced Construction
Whether its the hi-tech Drylin linear bearings or the lightweight aerospace grade alloy construction, that we bond rather than weld for superior performance, we ensure every detail has been meticulously worked out to provide the perfect motorised projector lift.
Software Configuration App
Do you want to change the way the projector lift operates, update firmware, or simply see how many times it’s gone up and down? Well now you can with our Control Pad software. Free to download, It has all the features you could possibly need.
AVAILABLE IN YOUR CHOICE OF COLOUR
Pure Theatre Projector Lift's can be Powder Coated in-house to allow for a custom finish in your choice of colour. For an additional charge, our expert engineers can help to conceal your Projector Lift just that bit further to allow for an effortless blend into any chosen living space.
Specifications
| SKU | CR35-LFT |
|---|---|
| Lead Time Availability | Allow 3-5 Days to Manufacture |
| Manufacturer | Pure Theatre |
| Color | White |
| Lift Dimensions (W x D x H) | 54cm x 49cm x 21cm |
| Max. Projector (W x D x H) | 38cm x 35cm x 19cm |
| Travel | 15cm |
| Maximum Weight (kg) | 12 |
| Raise / Lower time | 5 seconds |
| Noise: | 30 decibels |
| Power Supply | 100-240VAC 50/60Hz |
| Power Usage | max: 375W / Stationary: |
| Warranty | 3 Years Return to base |
| Product Weight (Kg) | 9 |
Documentation
PDF's/Downloads
These are the downloads of the pdf's
Reviews
Customer Reviews
Write Your Own Review
Related
Frequently Asked Questions
- Which Projector Lift Do I Need?
-
Each of our projector lifts have different internal dimensions and therefore fit different projectors. We have specifically designed a large range of projector lifts to cover as many projectors as we can. To decide which lift is best for you, please use our projector compatibility chart to see which projector lift fits your ...
- Mounting the Projector inside the Lift
-
Our projector lifts come with a projector mounting tray that makes it easy to install and remove your projector. Projectors should be mounted upside down. Mount the projector to the projector tray, ensuring the arrow points to the front of the projector. There are pre-drilled holes for the most popular projectors. Should you ...
- What voltage? 110v or 240v
-
Our lifts and screens come complete with a worldwide power supply. Mains voltage input from 100v to 240v @ 50-60Hz.
