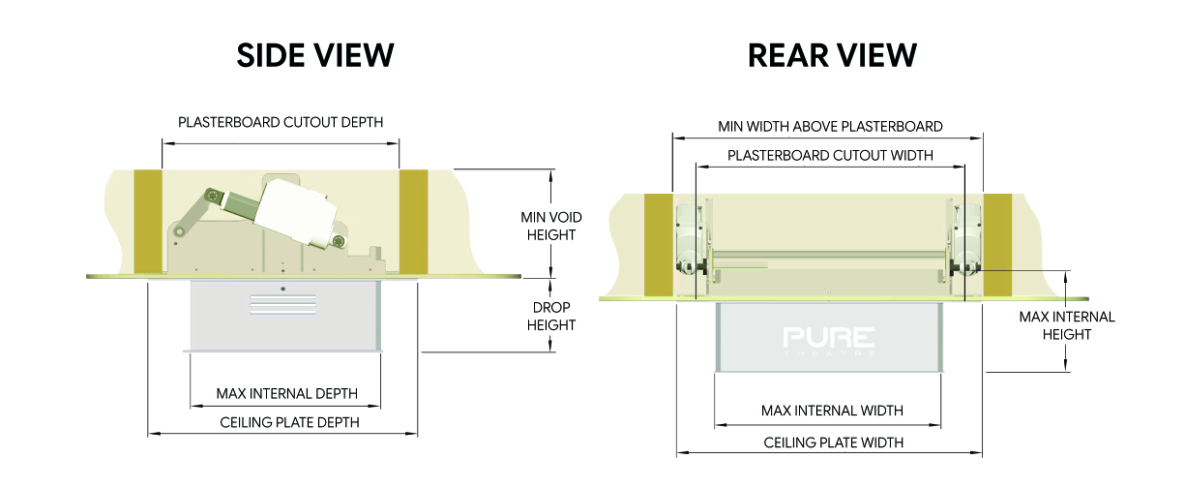

The majority of our projector lifts have a minimum void height of 210mm however, the CR60 and above require more than this. To see exact void heights, please see the full-size chart below.
Compare all lift sizes
← Scroll to see all columns →
| Lift Model | Max Internal (mm) | Ceiling Plate (mm) | Plasterboard Cutout (mm) | Plasterboard Above (mm) | Void (mm) | Drop (mm) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Width | Depth | Height | Width | Depth | Width | Depth | Width | |||
| CR25 | 380 | 260 | 125 | 540 | 400 | 500 | 330 | 590 | 155 | 100 |
| CR35 | 380 | 350 | 190 | 540 | 490 | 500 | 420 | 590 | 210 | 155 |
| CR35W | 470 | 350 | 190 | 630 | 490 | 590 | 420 | 680 | 210 | 155 |
| CR40 | 470 | 440 | 190 | 630 | 585 | 590 | 515 | 690 | 210 | 155 |
| CR50 | 540 | 525 | 200 | 700 | 665 | 660 | 595 | 750 | 210 | 155 |
| CR60 | 550 | 600 | 235 | 730 | 755 | 690 | 685 | 780 | 235 | 190 |
| CR70 | 550 | 700 | 270 | 730 | 855 | 690 | 785 | 780 | 290 | 230 |
| CR90 | 550 | 900 | 270 | 730 | 1055 | 690 | 985 | 780 | 265 | 210 |
