Which Projector Lift Do I Need?

To decide which lift is best for you, please use our projector compatibility chart to see which projector lift fits your particular projector model. Alternatively, on our projector pages, you should see the compatible projector lift within the specifications.

Mounting the Projector inside the Lift

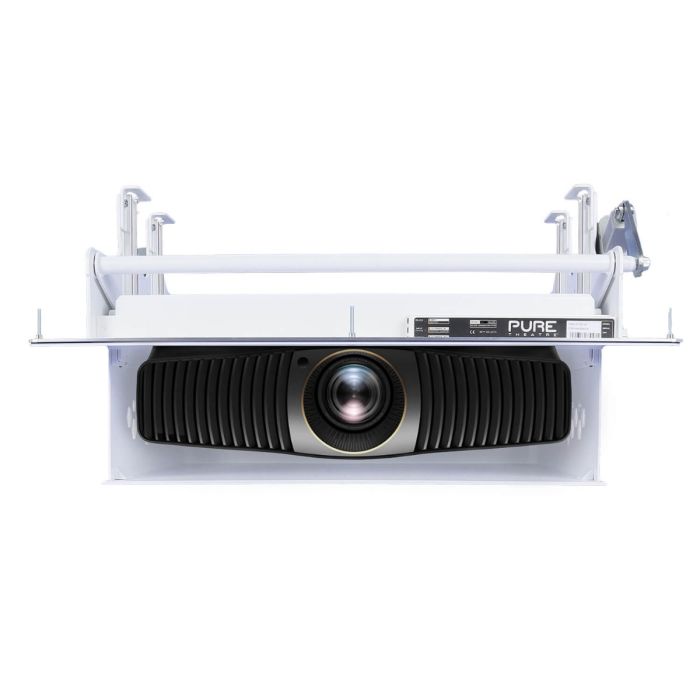

Our projector lifts come with a projector mounting tray that makes it easy to install and remove your projector. Projectors should be mounted upside down. Mount the projector to the projector tray, ensuring the arrow points to the front of the projector. There are pre-drilled holes for the most popular projectors. Should you ...

We don't physically install the equipment, but we're here to support you throughout the installation process with expert advice and guidance. Our products are engineered with installation in mind, making them straightforward for your builder or electrician to fit as part of your existing building works. This means you can avoid ...

What voltage? 110v or 240v

Our lifts and screens come complete with a worldwide power supply. Mains voltage input from 100v to 240v @ 50-60Hz.

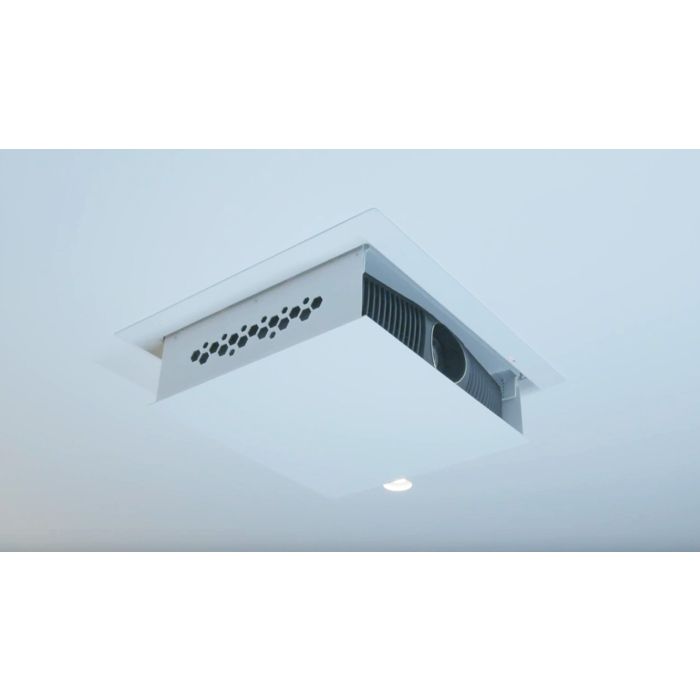

CR50 Projector Lift | Pure Theatre

Name: Pure Theatre Projector Lift
Uploaded: 2023-01-12T15:53:39
Duration: 49.7
Description: CR50 Projector Lift

Description

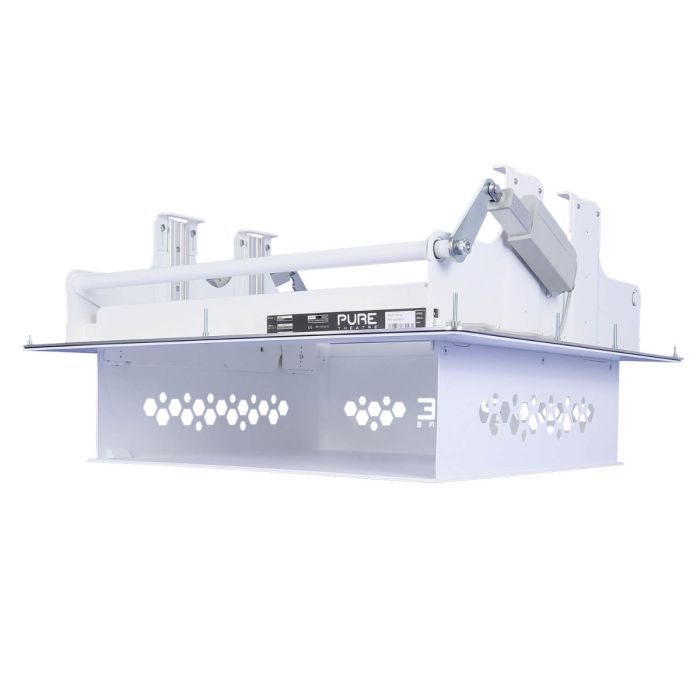

CR50 PROJECTOR LIFT

HIDE YOUR PROJECTOR

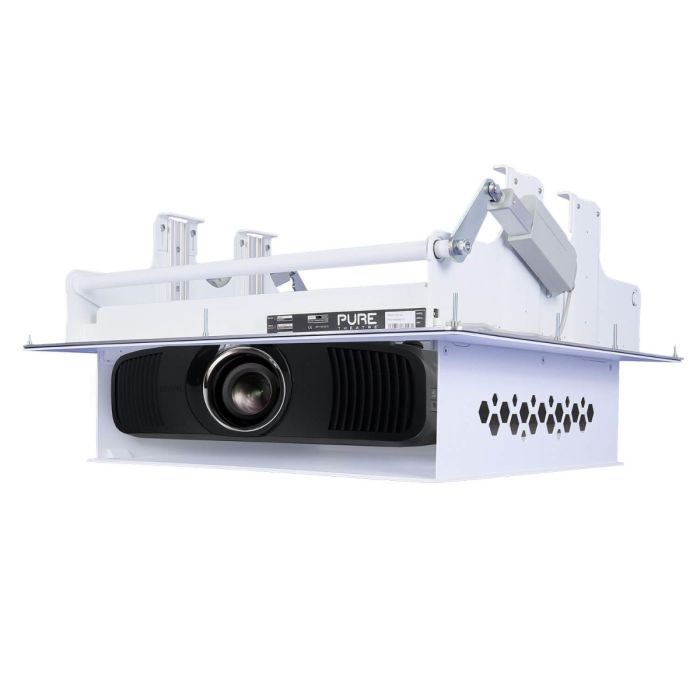

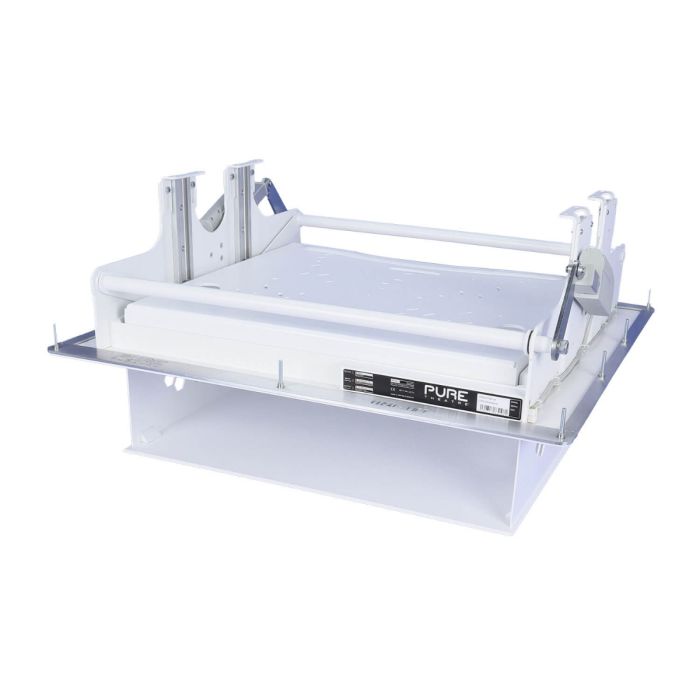

The CR50 projector lift is our most popular retractable projector ceiling mount used to hide your projector into the ceiling when it's not being used.

The CR50 Ceiling Lift fits all of the most popular 4K projectors allowing you to be future proof for years to come.

The motorised feature of the projector lift allows it to retract at the touch of a button.

KEY FEATURES

Concealed Solution

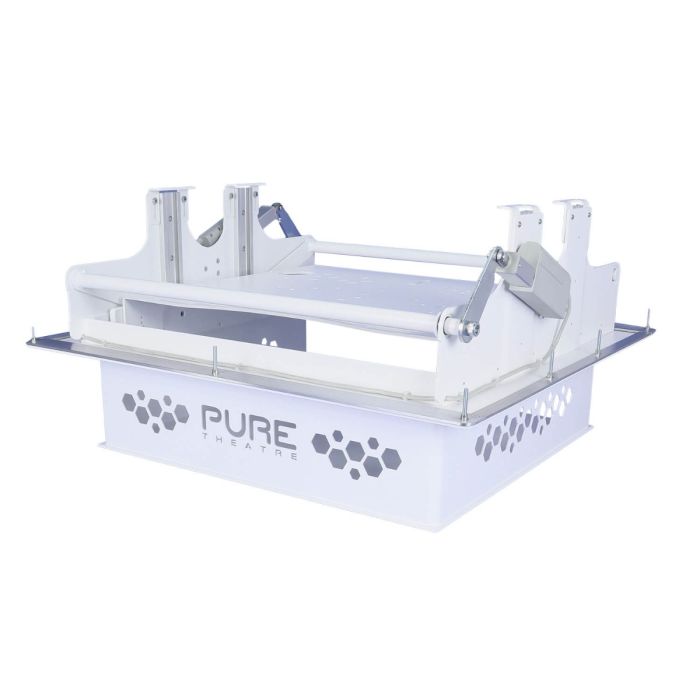

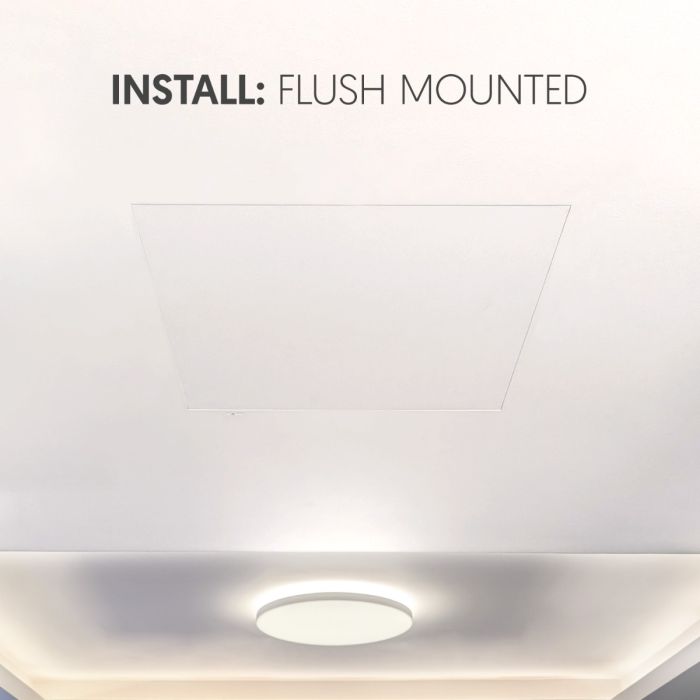

A unique lightweight aluminium construction encases the projector whilst retaining a smooth exterior profile. This enables home owners to have a fully recessed ceiling lift mechanism that is only seen when it’s meant to be.

Easy Installation

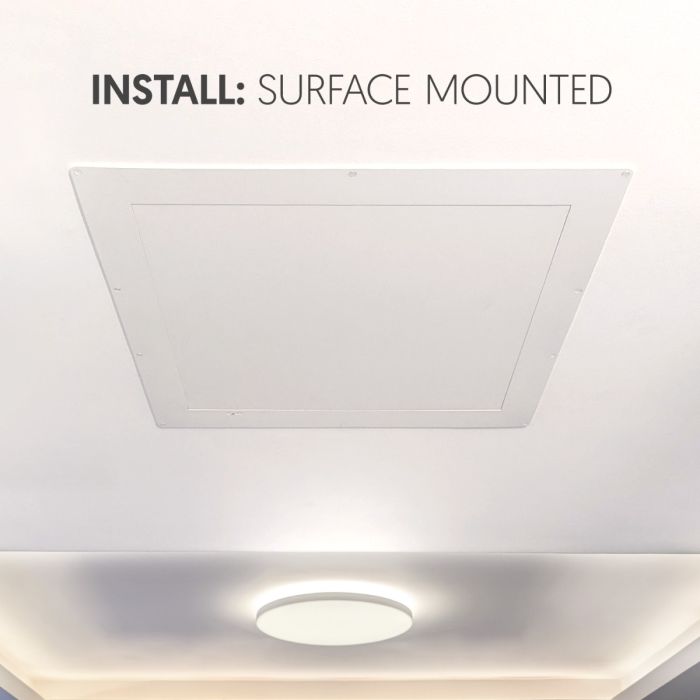

As with our screens, lifts are designed with installation in mind, and can easily be fitted to standard ceilings creating the most compact in-ceiling projector lifts available. Our unique mounting system means you don’t even have to paint the ceiling after fitting

Built In Control System

Designed and programmed in-house, our control system provides the most advanced features of any screen in the world.

Quiet and Precise

Our 24v DC linear actuator drive motors provide the fastest, most reliable, and precise operation. Linked to our own advanced current sensing control system ensures that the ceiling lift closes seamlessly every time with near silent operation of only 35dB.

Advanced Construction

Whether its the hi-tech Drylin linear bearings or the lightweight aerospace grade alloy construction, that we bond rather than weld for superior performance, we ensure every detail has been meticulously worked out to provide the perfect motorised projector lift.

Software Configuration App

Do you want to change the way the projector lift operates, update firmware, or simply see how many times it’s gone up and down? Well now you can with our Control Pad software. Free to download, It has all the features you could possibly need.

DIMENSIONS

Side View

The side view shows the CR50 will fit in standard 8" joists, with a distance of 595mm between joists. It is normal to trim a section from one joist to fit the ceiling lift.

View Dimensions PDF

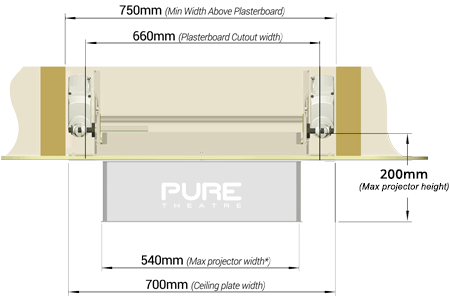

Rear View

The side view shows the CR50 will fit in standard 8" joists, with a distance of 595mm between joists. It is normal to trim a section from one joist to fit the lift.

View Dimensions PDF

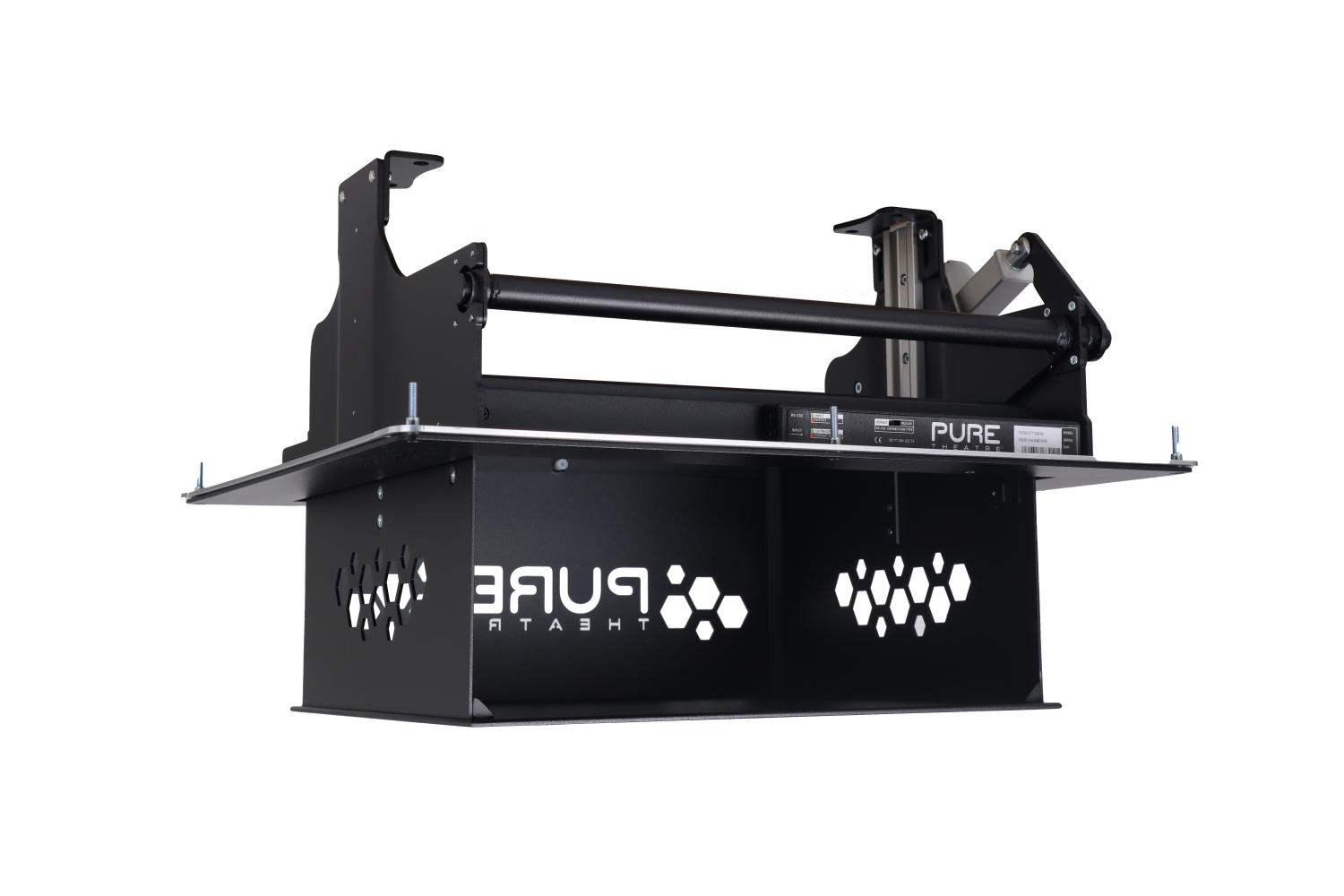

CHOICE OF COLOURS

Pure Theatre Projector Lift's can be Powder Coated in-house to allow for a custom finish in your choice of colour. For an additional charge, our expert engineers can help to conceal your Projector Lift just that bit further to allow for an effortless blend into any chosen living space. Many customers choose black projector lifts to fit in with dark decor.

Add a Custom Colour Powder Coat Finish
